Box Einsatz

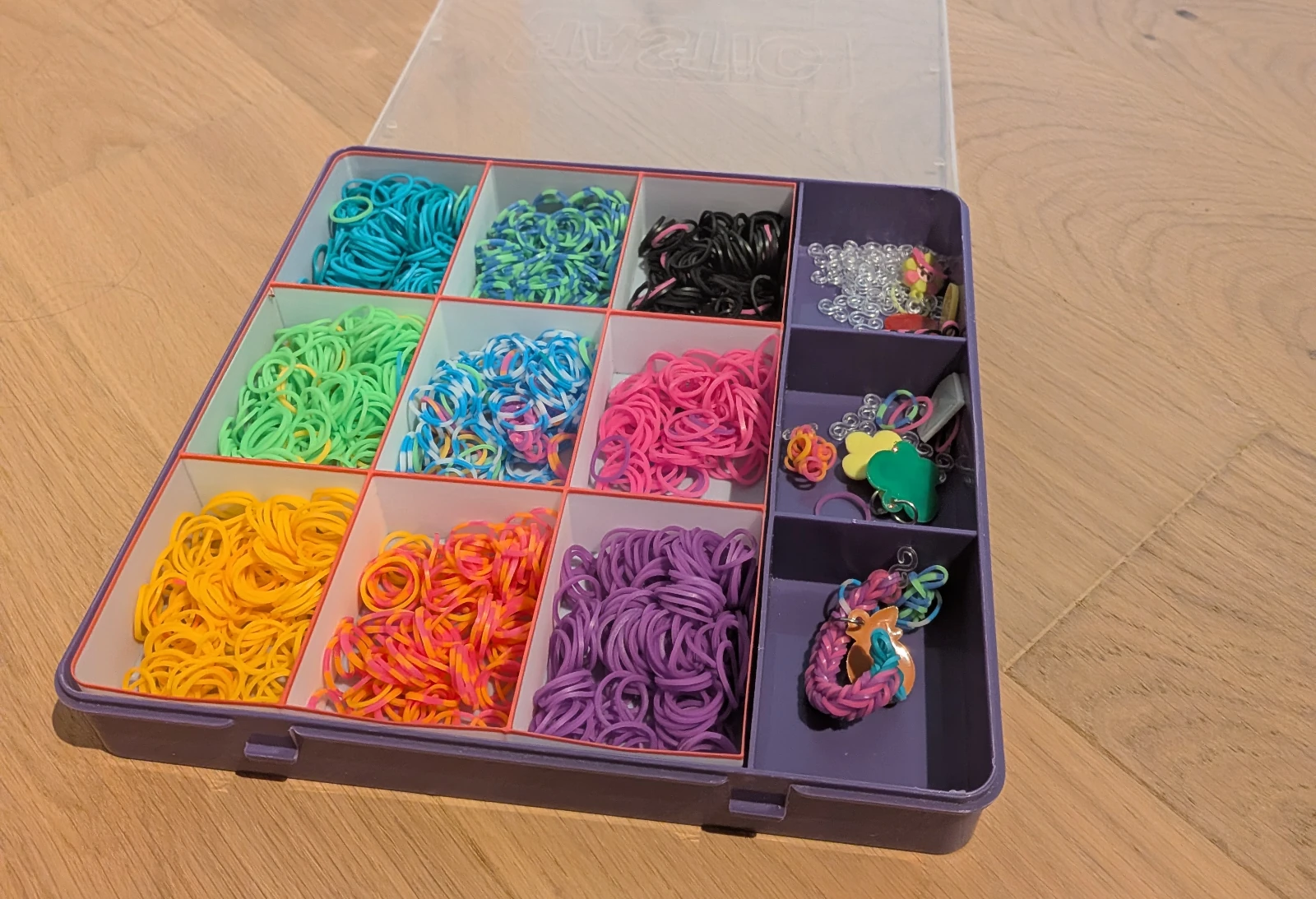

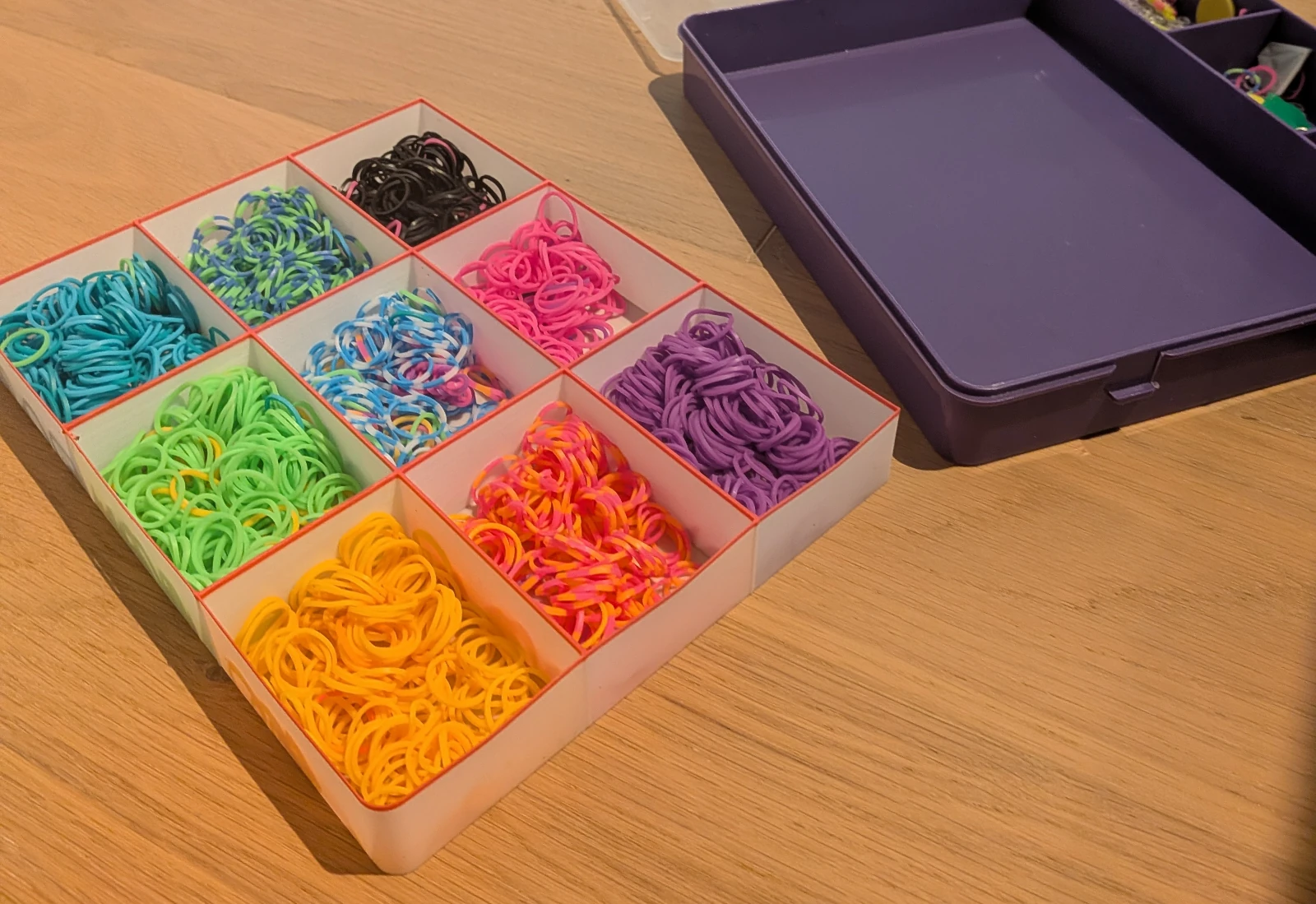

Ich habe dieses Modell für eine Gummibänder-Box erstellt, damit diese besser organisiert sind.
Das Modell ist vollkommen parametrisch, sodass du es an deine Box anpassen kannst. Auch die Anzahl der Reihen und Spalten ist konfigurierbar.
Wenn du auch einen farbigen Rand haben möchtest, kannst du bei deinem Slicer einen Filamentwechsel einstellen.
Vorschau
Parameter
▶Binärdateien
include <BOSL2/std.scad>
$fn = 100;
/* [Box Dimensions] */
// Width of the box (mm)
w = 154;
// Length of the box (mm)
l = 204;
// Height of the box (mm)
h = 26;
/* [Grid] */
// Wall thickness of the dividers (mm)
wall = 0.8;
// Number of rows
rows = 3;
// Number of columns
columns = 3;
/* [Rounding] */
// Radius of the rounded edges (mm)
rounding = 6;
// Round the left-front vertical edge
rounded_edge_left_front = true;
// Round the left-back vertical edge
rounded_edge_left_back = true;
// Round the right-front vertical edge
rounded_edge_right_front = false;
// Round the right-back vertical edge
rounded_edge_right_back = false;
/* [Hidden] */
_edges = [
if (rounded_edge_left_front) LEFT + FRONT,
if (rounded_edge_left_back) LEFT + BACK,
if (rounded_edge_right_front) RIGHT + FRONT,
if (rounded_edge_right_back) RIGHT + BACK,
];
_tube_rounding = [
rounded_edge_right_back ? rounding : 0,
rounded_edge_left_back ? rounding : 0,rounded_edge_left_front ? rounding : 0,
rounded_edge_right_front ? rounding : 0,
];
union() {
rect_tube(size=[w, l], wall=wall, h=h, rounding=_tube_rounding);
cuboid([w, l, 0.2], rounding=rounding, edges=_edges) {
for (i = [1:rows-1]) {
position(BACK)
translate([0, -l / rows * i, 0])
cuboid([w, wall, h], anchor=BOTTOM);
}
for (i = [1:columns-1]) {
position(LEFT)
translate([w / columns * i, 0, 0])
cuboid([wall, l, h], anchor=BOTTOM);
}
}
}
